Edging
The edging solution is engineered to suit the end application, subsequent machining operations and required performance. The edge can be applied directly to the honeycomb core or to an integrated perimeter frame; alternatively, it can be finished with an aluminum T-profile or a custom-engineered solid insert.

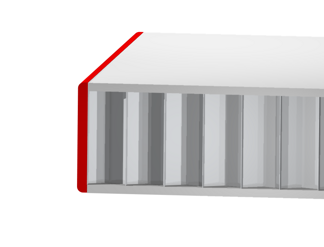

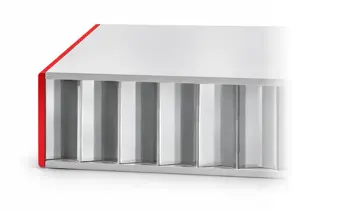

Edge applied directly to the honeycomb core
The ABS or wood veneer edge is applied directly to the honeycomb core, completing the panel with a lightweight solution that adds minimal thickness.
DEVELOPMENT PROCESS
Stratigraphic study
Frame Integration
Edging
> Applied to the honeycomb core
> Applied to a perimeter frame
> With an aluminum T-profile
> With an integrated solid insert
Coating with laminate
CNC machining
Tool insertion

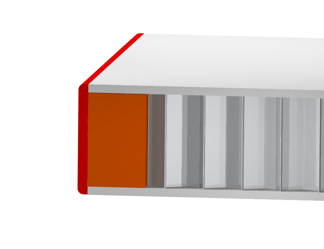

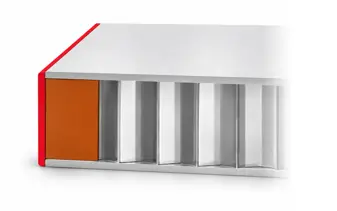

Edge applied to an integrated perimeter frame
The edge is applied to a perimeter frame integrated into the panel, allowing the use of standard edgebanding technologies.

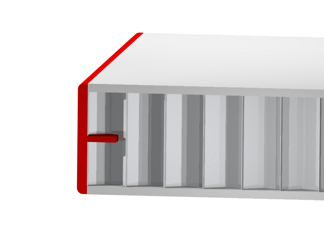

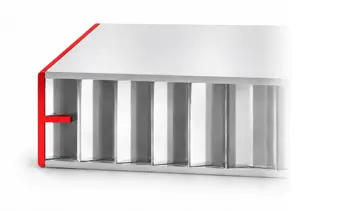

Edge with an aluminum T-profile
The aluminum T-profile is inserted into a milled slot in the honeycomb core. The mechanical interlock provides a strong, continuous connection.

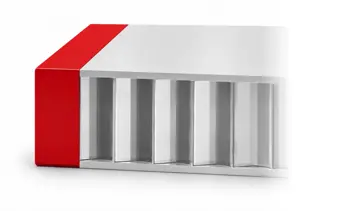

Edge with an integrated solid insert
The integrated solid insert can be shaped and sized to meet the project’s aesthetic, mechanical and functional requirements.
Edge applied directly to the honeycomb core
The lightest and simplest solution, ideal when low weight and minimal thickness are required.

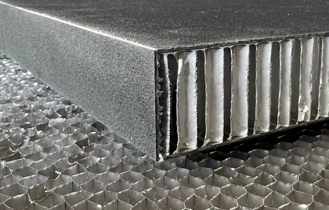

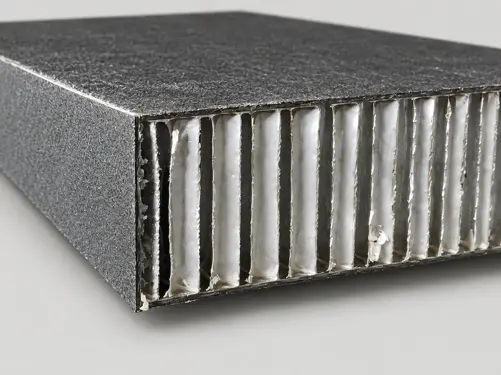

Fiberglass edge
Made from the same material as the panel face to ensure material continuity.

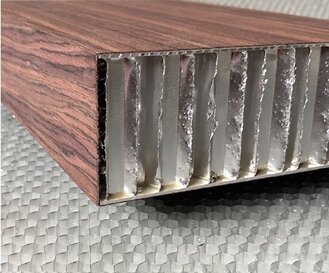

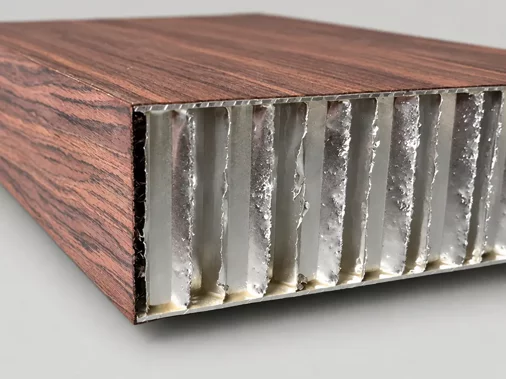

Wood veneer edge
The wood veneer edge creates material continuity with the panel surface, enhances its profile and gives the finished element a refined, consistent appearance.

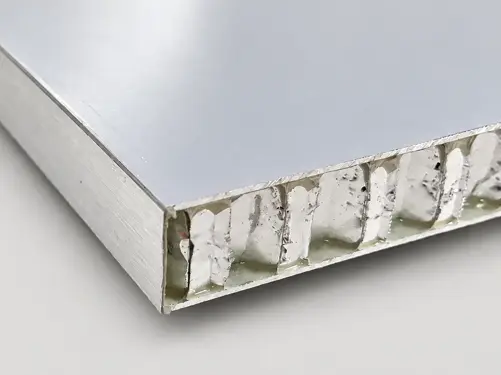

Aluminum edge
The aluminum edge protects the panel perimeter and enhances its technical character. It can be finished to match the panel surfaces or provide a contrasting detail, depending on the project requirements.

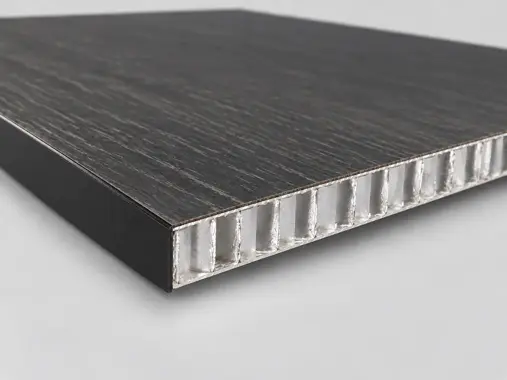

ABS edge
The ABS edge protects the panel perimeter and provides a durable finish. Available in a wide range of thicknesses, colors and effects, it can be coordinated with the surface finish or used as a contrasting detail.
Technical Documentation
Edge applied to an integrated perimeter frame
The frame provides continuous support for the edge and allows the use of standard edgebanding technologies.
Plywood substrate
A material that provides stability and structural support to the panel.
Eulithe® substrate
A material used when high moisture resistance is required.

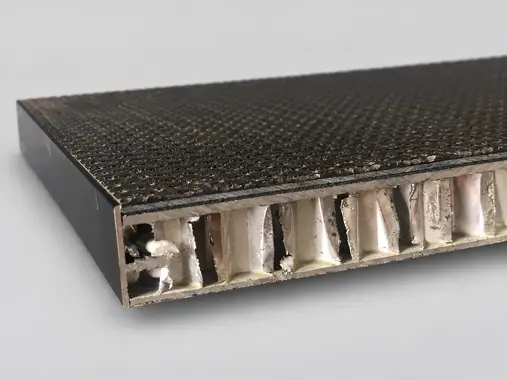

Edge with an aluminum T-profile
The profile inserted into the honeycomb core creates a continuous mechanical connection and a precise technical finish.

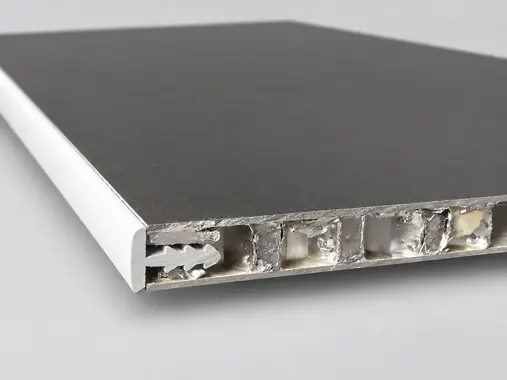

Aluminum T-profile
The aluminum profile protects the panel edge and provides a precise, durable finish. Its geometry and finish can be customized to suit the project requirements.
ABS T-profile
ABS profile with custom geometry and color options.

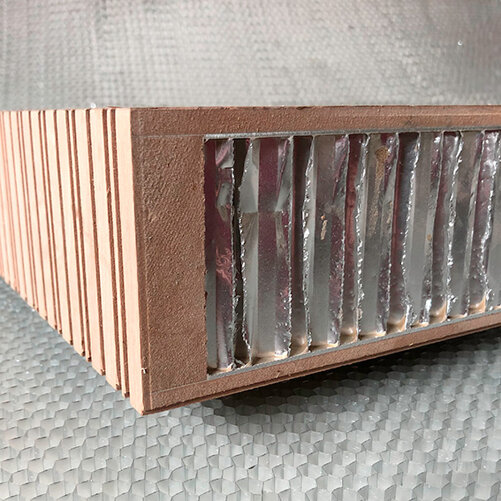

Edge with an integrated solid insert
The perimeter can be shaped and machined to meet the project’s aesthetic, mechanical and functional requirements.
-versione-equailizzata.jpeg)
HDF insert
A material that can be machined to create decorative surface textures.
Let’s discuss your project
We work with you to analyse the requirements of your application and develop the most suitable technical solution.
