Reinforcements insertion

The frame or internal or perimeter solid wood core of the panel allows the product to be worked like a traditional panel.
The size of the frame is defined with the customer based on the processing that will be carried out on the panel.

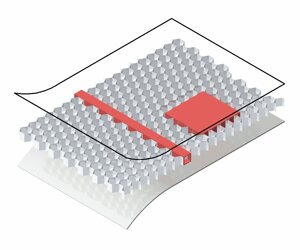

Internal frameworks in aluminum honeycomb panels

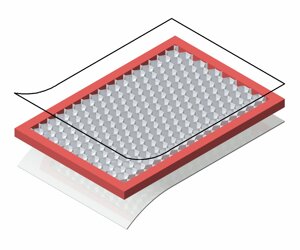

Perimeter frames

Project

Stratigraphic study

Frame and Edge Reinforcement Integration:

>Material selection

> Geometry definition

Processes

Perimeter frame on all sides or part of them, for edging or hardware insertion

Internal frames

Internal frames for the insertion of hardware or for the creation of holes, through holes, or various types of milling. Insertion of tubes for cable passage.

Types of frame

The perimeter and internal frames can be made with different materials; the choice of these is made based on the processes that need to be carried out and can be:

Shaped frame made of plywood in aluminum honeycomb panels

Multilayer frame in aluminum honeycomb panels

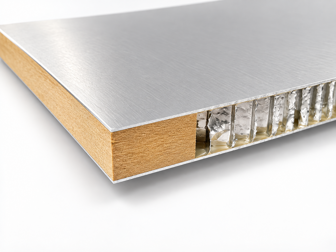

MDF

Economical material to use when a support is needed to be lacquered

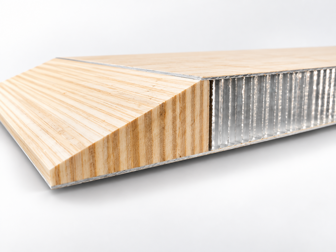

Plywood

Machined and left exposed to showcase the material. Lightweight and durable, plywood provides excellent structural performance.

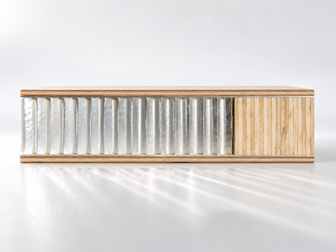

Plywood

Can be used between the skins, left exposed, or as an edge-banding support. Lightweight and durable, it provides an ideal substrate for mounting hardware.

Aluminum frame in aluminum honeycomb panels

Multiple frame in honeycomb aluminum panels

Shaping of perimeter frames in aluminum panels

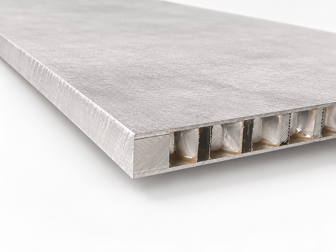

Aluminum solid wood

Used where edge banding is not required, it can be painted and offers excellent resistance to water and humidity. It also provides a reliable substrate for mounting hardware.

Aluminum profile

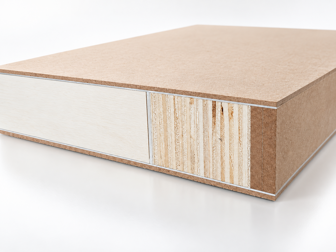

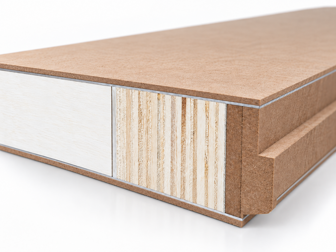

When multiple functions are required, the edge reinforcement can be built as a multi-layer structure. In the example shown, it combines MDF, plywood and 3 mm aluminum, configured to create a high-rigidity "H" structure.

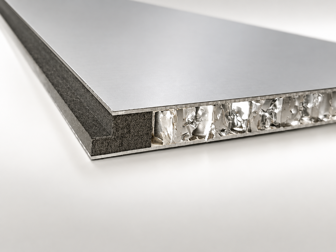

HPL

It can be used between the skins or machined and left exposed without the need for edge banding, thanks to its technical properties.

Eulithe frame in aluminum honeycomb panels

internal frame in aluminum honeycomb panels

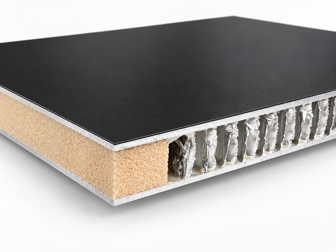

High-density expanded polyurethane

Excellent support on which it is possible to edge, excellent water resistance

Do you have a specific requirement?

We design the panel that best suits your application.

Aluminum frame doors, even in large sizes, covered in thin ceramic or glass.
In the photo, the doors have a solid wood perimeter for processing:
- 45° cut in the thickness for grip. - Hardware insertion for doors and drawers. - Edged in ABS.
