CNC machining

Composite panels are machined on 5-axis CNC machining centers to produce drilled holes, milled features, pockets, grooves, and complex shapes with high precision. All machining operations are carried out directly on the finished panel.

CNC machining is developed from the customer's drawings and subsequently engineered by our technical department to ensure the required dimensional accuracy and manufacturing quality.

DEVELOPMENT PROCESS

Stratigraphic study →

Frame Integration

Edging →

Coating with laminate →

CNC machining →

- Milling

- Drilling

Tool insertion →

Milling

Composite panels can be machined using solid carbide (VHM) cutting tools. The selection of cutting tools and machining parameters depends on the panel facing material and the required geometry, ensuring high precision, excellent surface finish, and maximum productivity.

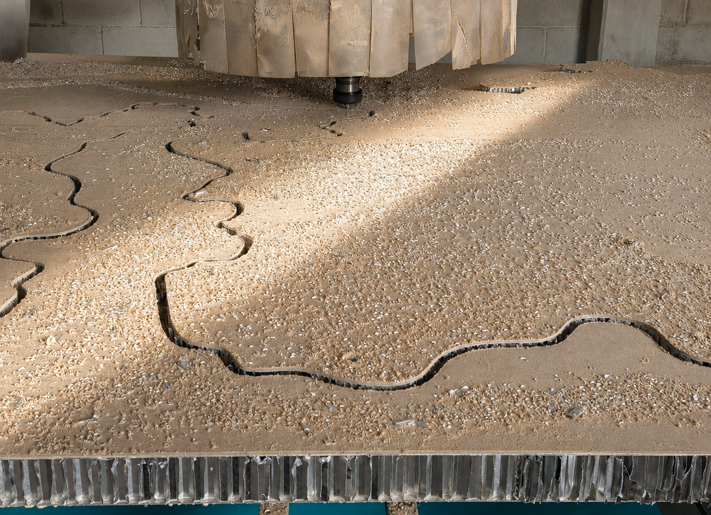

CNC milling on drawing

CNC Shaping

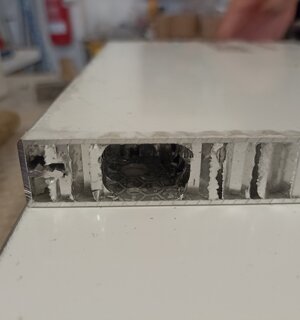

Panel thickness processing detail

Profile shaping according to drawing

Grooves in thickness

Pocket reduction

Drilling

Sandwich panels can be drilled with traditional metal bits (HSS-twist). If a hole with a diameter greater than 5 mm is required, the panel must be pre-drilled.

Drilling for MA inserts

Insertion of mechanical joints

Technical Documentation

Do you have

a specific requirement?

We engineer frames and solid timber reinforcements according to the specified hardware and operating loads, delivering a component ready for assembly.

Request Technical Consultation →
