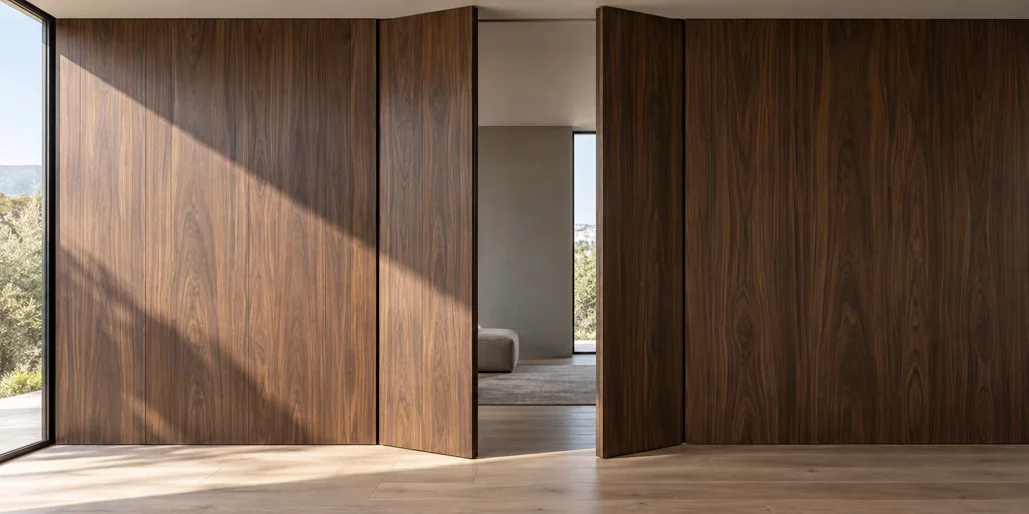

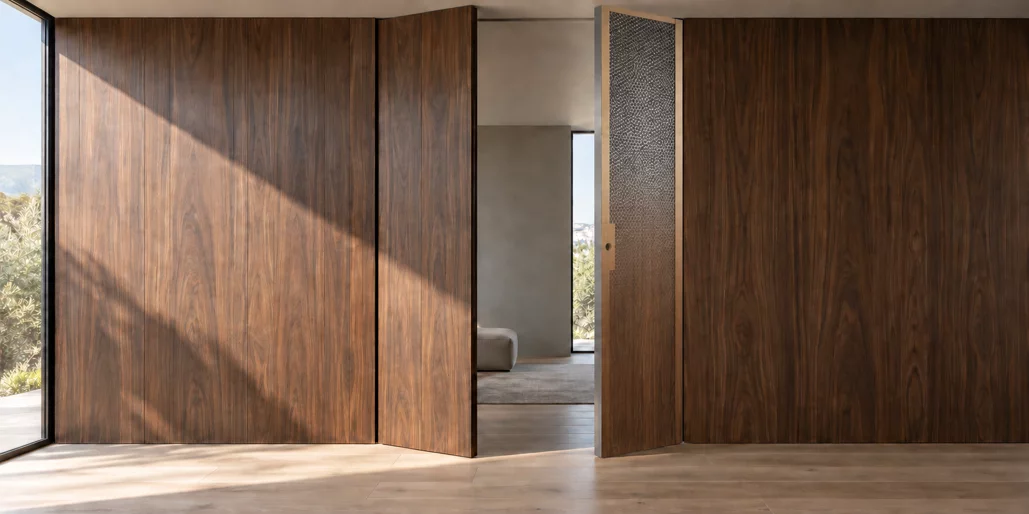

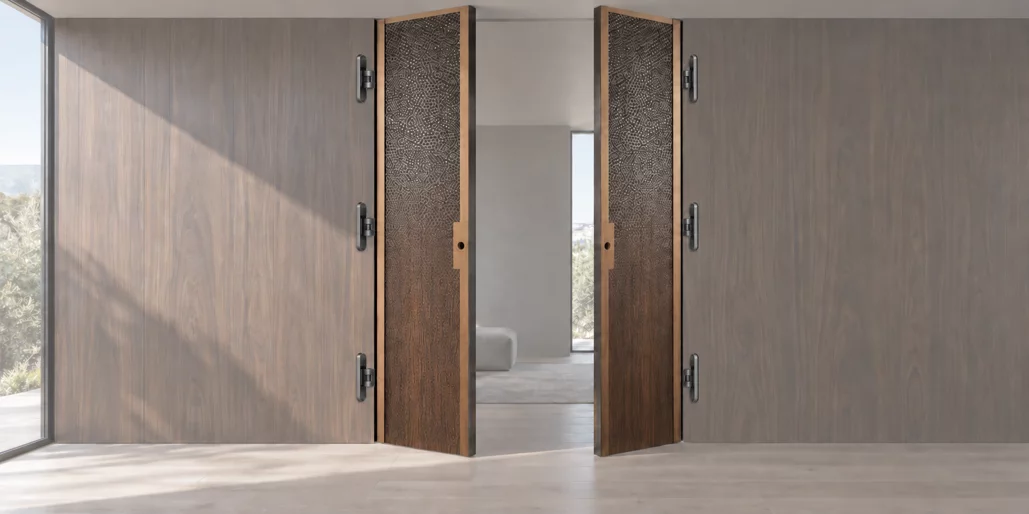

Door panels
Door panels
Making the door panel with aluminum honeycomb technology makes it possible to build lightweight doors, resistant to bending, with very heavy and large external surfaces.
Door panel with ALUXAPP technology
Sliding door panel
Swing door panel

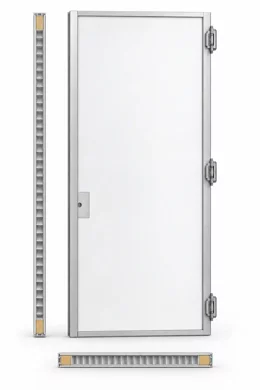

The panels are available in two configurations:
- full-height door
- door with a masonry transom above
In both versions, dedicated solid inserts are integrated, sized and positioned to suit the specific hardware that will be fastened.
DIMENSIONS
Full-height doors, floor-to-ceiling
Dimensions:
X = width, up to 1400 mm
Y = height, up to 4000 mm
Z = thickness, from 20 to 100 mm
Door panels to be lacquered
We produce boiserie panels to be veneered in three solutions, with:
with ALUXAPP, the veneer is applied directly on aluminum, for use in humid environments,
with ALUXAPP-H the veneer is on 1.8 mm thick HDF and
with ALUXAPP-T the veneer is on 3 mm thick chipboard, for environments without particular humidity problems.
ALUXAPPA-H panel edged in lacquered ABS
Veneer directly on aluminum
surfaces:
sheets with primer from 1 mm
___________________________________
frame
in Eulithe® or phenolic plywood
___________________________________
edge in veneer, metal or ABS.
ALUXAPP is chosen for applications in humid environments or where there are problems with lacquering aluminum directly.
- Threaded insert
Door panel in :
ALUXAPP
Veneered finish on HDF 1.8 mm
surfaces: primed sheets
0.5/1 mm + HDF from 1.8 to 6 mm THK
___________________________________
frame
in Eulithe® or phenolic plywood
___________________________________
edge in veneer, metal or ABS.
ALUXAPP-H can be lacquered more easily, it is suitable for normal environments that do not have particular humidity issues.
- Nylon insert
- Threaded insert + washer
Door panel in :
ALUXAPP-H
Pre-painted sheets RAL color
surfaces:
sheets pre-painted 1/1.5 mm thick
___________________________________
frame:
in Eulithe® or phenolic plywood
___________________________________
edge in ABS, metal or ABS.
- Nylon insert
- threaded insert + washer
Door panel in :
ALUXAPP-V
Veneered door panels
Door panels made in three versions: ALUXAPP-E, ALUXAPP-TE and ALUXAPP-HE
Boiserie with lacquered ALUXAPP panels
Lacquering on 1 / 1.5 / 2 mm aluminum sheets
surfaces:
sheets with primer of 1 mm
___________________________________
frame
in Eulithe® or phenolic plywood
___________________________________
edge in wood, metal or ABS.
Door panel in :
ALUXAPP
ALUXAPP is chosen for applications in humid environments or where there are problems with lacquering aluminum directly.
- Threaded insert
Lacquering on HDF 1.8 or 6 mm (possible processing in thickness)
surfaces: sheets with primer
0.5/1 mm + HDF from 1.8 to 6 mm TH
___________________________________
frame
in Eulithe® or phenolic plywood
___________________________________
edge in wood, metal or ABS.
ALUXAPP-H can be lacquered more easily, it is suitable for normal environments that do not have particular humidity problems.
- Nylon insert
- threaded insert + washer
Door panel in :
ALUXAPP-H
Veneered wood on 3 mm chipboard
surfaces: sheets with primer
0.5/1 mm + HDF from 1.8 to 6 mm THK
___________________________________
frame
in Eulithe® or phenolic plywood
___________________________________
edge in wood, metal or ABS.
ALUXAPP-T can be lacquered more easily, it is suitable for normal environments that do not have particular humidity issues.
- Nylon insert
- Threaded insert + washer
Door panel in :
ALUXAPP-T

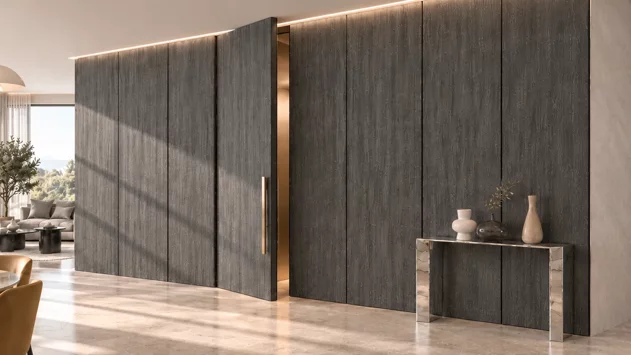

HPL laminate panels
ALUXAPP-HPL is used with Eulithe frame for applications in particularly humid environments such as swimming pools, bathrooms, etc.
Whereas ALUXAPP-H.HPL with plywood frame is for normal environments that do not have particular humidity issues.
With HPL laminate on two sides or only one side.
Aluminum + HPL Laminate, on one or both sides
surfaces:
sheets with 0.5 mm Sp primer
+ HPL 0.9 mm SP
___________________________________
frame in phenolic plywood or Eulithe®
___________________________________
edge in ABS, in metal, profiles in
aluminum "T" in aluminum
- It is possible to provide a layer of cork for acoustic insulation.
- Threaded insert
- Threaded bushing
Door panel in :
ALUXAPP-HPL
Aluminum + HDF + Laminated HPL, on one or both sides
surfaces:
sheets with primer 0.5 mm Sp + HDF 1.8 mm
+ HPL 0.9 mm SP
___________________________________
frame in phenolic plywood or Eulithe®
___________________________________
edge in ABS, in metal, profiles in
aluminum "T" in aluminum
- It is possible to provide a layer of cork for acoustic insulation.
- Threaded insert
- Threaded bushing
Door panel in :
ALUXAPP-H.HPL

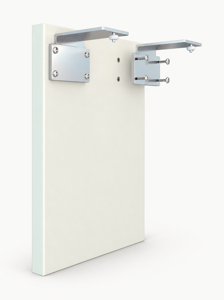

Hardware inserts

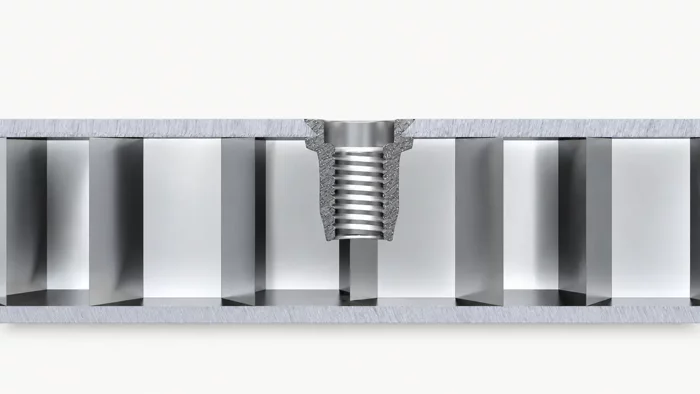

Metric thread inserts
.
The inserts with metric thread are anchored to the aluminum skins through a mechanical deformation system of the insert itself. This screwing system is particularly solid and reversible, because the screws can be screwed and unscrewed multiple times.
Sliding trolleys
.
Do you have a specific requirement?
We design the panel that best suits your application.

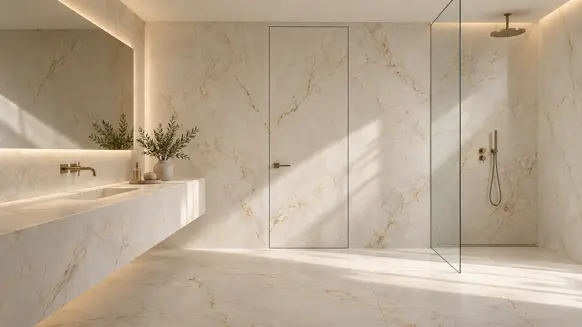

Aluminum frame doors, even in large sizes, covered in thin ceramic or glass.
In the photo, the doors have a solid wood perimeter for processing:
- 45° cut in the thickness for grip. - Hardware insertion for doors and drawers. - Edged in ABS.
